Designed for QuickConnect

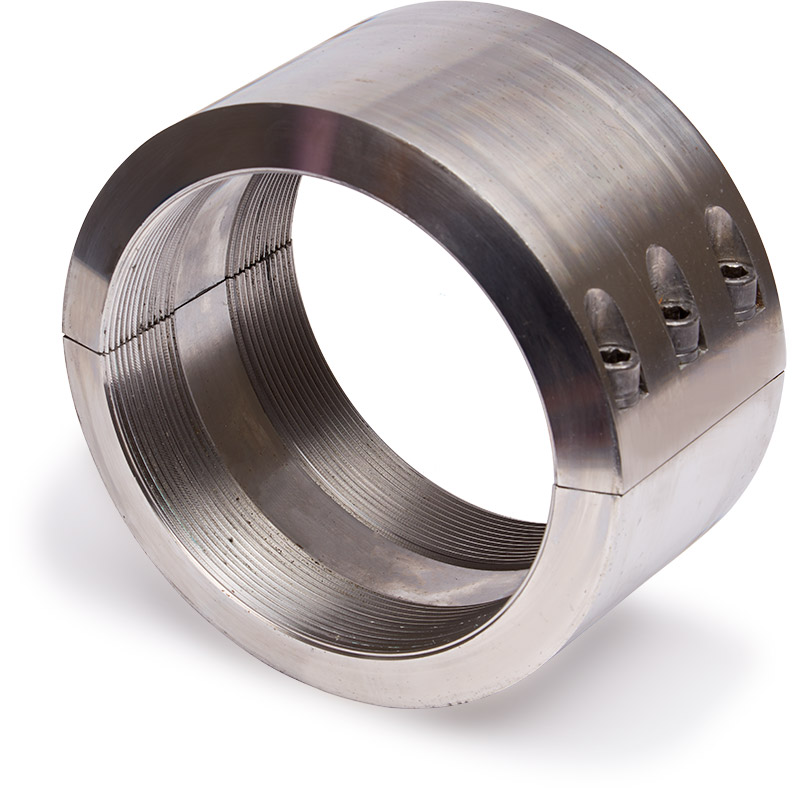

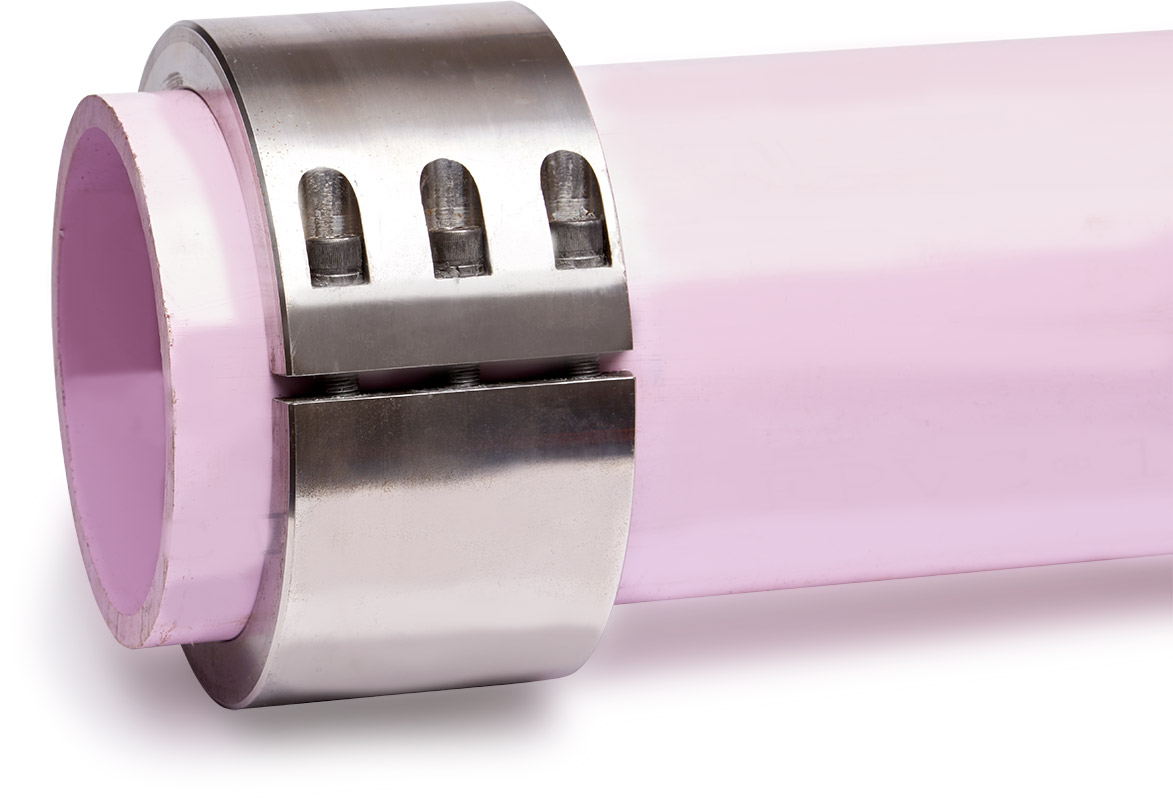

PULL COLLAR FOR FPVC/PVC PIPE
With our Pull Collar attachment, the connection process with FPVC or PVC pipe is easier than ever before. The unique design creates a closed seal to keep drilling fluids clear of your pipe allowing for fast and easy connections.
Product Benefits
- Works with both FPVC and PVC pipe
- Closed seal to keep drilling fluids out of pipe
- Provides “quick connections” adding speed and saving crew time
Applications
- Horizontal Directional Drilling (HDD)
- Pipe Bursting
- Slip Lining or any other method of pulling FPVC and PVC
| Pulling Head | D (in.) | L (in.) | Total Wgt (lb.) | Wgt (Per Half) |
|---|---|---|---|---|
| 6″ | 8.60 | 4.50 | 24 | 12 |
| 8″ | 10.75 | 4.50 | 32.5 | 16.2 |
| 12″ | 14.89 | 5.75 | 57 | 28.5 |
| Cap | A (in.) | B (in.) | Wgt (lb.) |
|---|---|---|---|
| 6″ | 7.50 | 1.00 | 4.11 |
| 8″ | 9.75 | 1.00 | 6.57 |
| 12″ | 14.00 | 1.00 | 13.85 |
